Deutz Fahr 5110G Standard & Premium

Deutz Fahr 5110G Standard & Premium
4 cylinder FARMotion Tier 4 engine
Emissions: DEF
Turbocharged & liquid cooled
106 engine hp

5110G Standard Cab                                              5110G Premium Cab with Hi-Vis Roof

20×20 transmission                                               40×40 transmission

Power shuttle with modulation                            Power shuttle with modulation

2 speed power shift (Hi/Lo)                                 2 speed power shift (Hi/Lo)

Stop & Go                                                                  Stop & Go   SDD Double Displacement Steering

4×4 and front wet brakes                                       4×4  and front wet brakes

Locking front and rear differential                      Locking front and rear differential

540/540E pto                                                            540/540E/1000/1000E

14.5 gpm rear hydraulics                                       14.5 gpm rear hydraulics

3 sets of rear remotes                                              3 sets of rear remotes

Mechanical rear hitch control                               Electronic rear hitch control

7,900lbs rear lift capacity                                       7,900lbs rear lift control

Air ride seat                                                                Air ride seat

Buddy seat                                                                  Buddy seat

Front: 420/70R24     Rear: 480/70R34               Front: 420/70R24       Rear: 480/70R34

Radial tires                                                                  Radial tires



Both come with Stoll FZ20 Loader

Self Leveling

Euro hitch connection

Hydro Fix- one lever hydraulic connection

Comfort Drive- soft ride accumulator

Quick connect loader system

3rd function installed

12ft 3in- max lift height at pivot point

5,930lbs lift capacity 3 foot infront of pivot point  (ground level)

4,321lbs lift capacity at 3 foot infront of pivot point (full height)

Categories: ,

Description

Deutz Fahr 5110G Standard & Premium
4 cylinder FARMotion Tier 4 engine
Emissions: DEF
Turbocharged & liquid cooled
106 engine hp

5110G Standard Cab                                              5110G Premium Cab with Hi-Vis Roof

20×20 transmission                                               40×40 transmission

Power shuttle with modulation                            Power shuttle with modulation

2 speed power shift (Hi/Lo)                                 2 speed power shift (Hi/Lo)

Stop & Go                                                                  Stop & Go   SDD Double Displacement Steering

4×4 and front wet brakes                                       4×4  and front wet brakes

Locking front and rear differential                      Locking front and rear differential

540/540E pto                                                            540/540E/1000/1000E

14.5 gpm rear hydraulics                                       14.5 gpm rear hydraulics

3 sets of rear remotes                                              3 sets of rear remotes

Mechanical rear hitch control                               Electronic rear hitch control

7,900lbs rear lift capacity                                       7,900lbs rear lift control

Air ride seat                                                                Air ride seat

Buddy seat                                                                  Buddy seat

Front: 420/70R24     Rear: 480/70R34               Front: 420/70R24       Rear: 480/70R34

Radial tires                                                                  Radial tires



Both come with Stoll FZ20 Loader

Self Leveling

Euro hitch connection

Hydro Fix- one lever hydraulic connection

Comfort Drive- soft ride accumulator

Quick connect loader system

3rd function installed

12ft 3in- max lift height at pivot point

5,930lbs lift capacity 3 foot infront of pivot point  (ground level)

4,321lbs lift capacity at 3 foot infront of pivot point (full height)

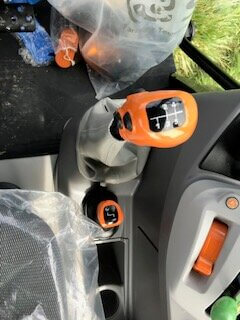

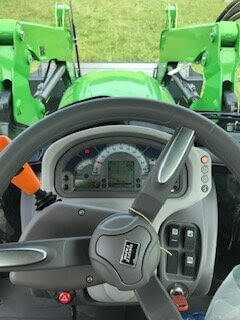

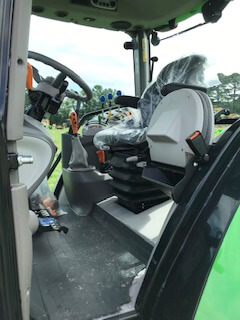

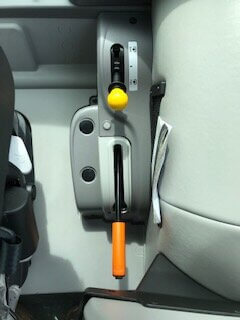

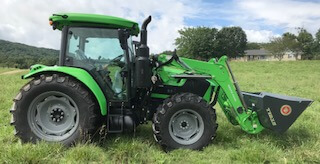

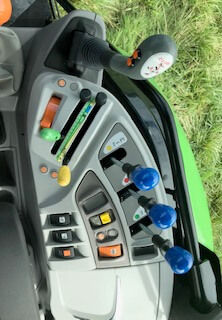

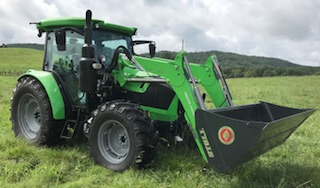

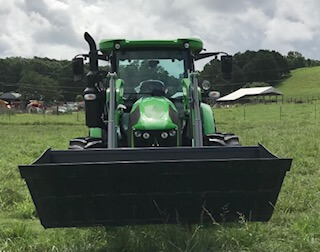

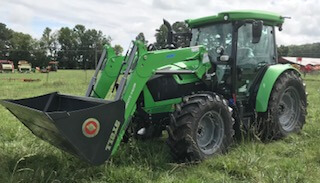

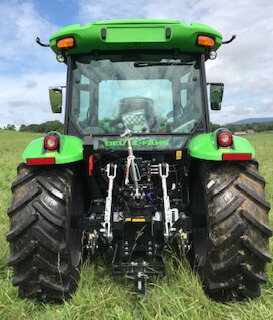

Pictures are of the Deutz 5110G Standard
